PBT15

Compact & Versatile

Description

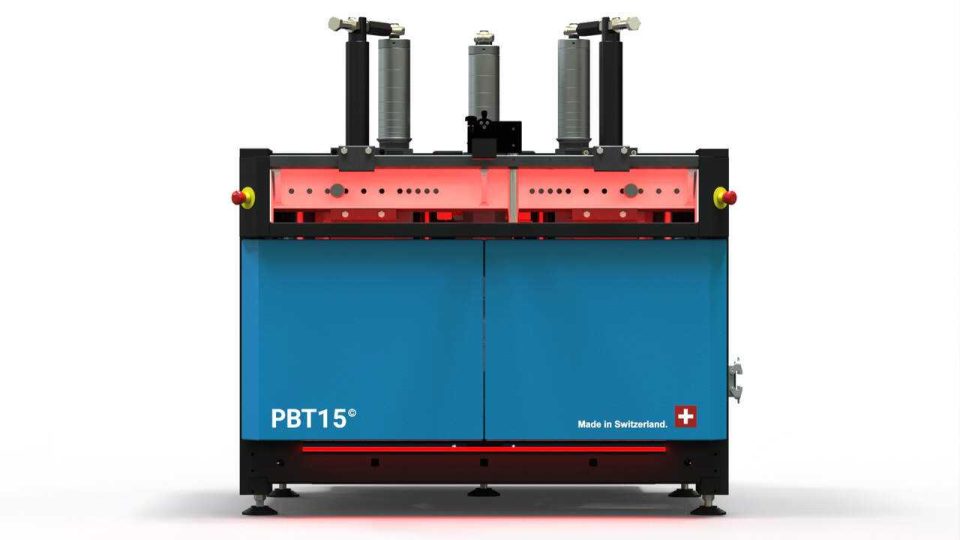

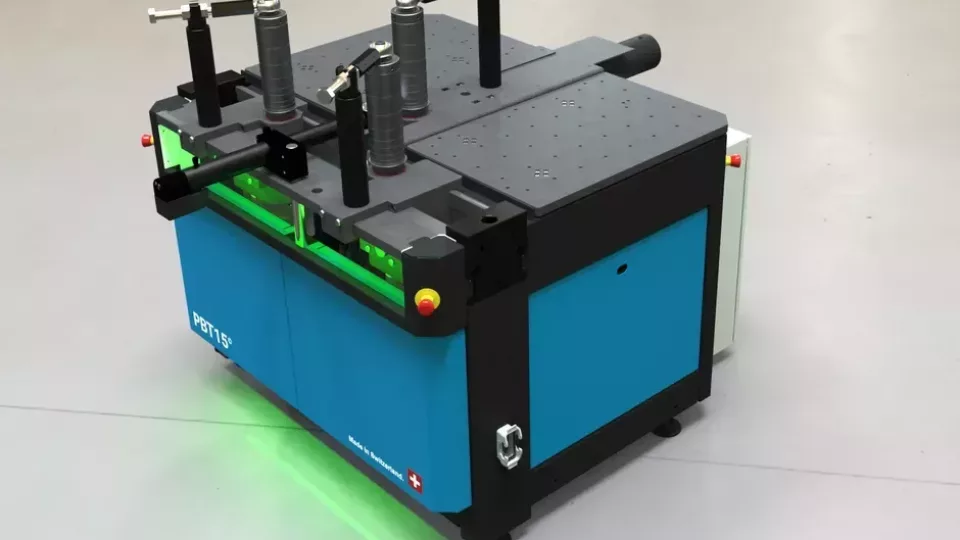

With the ability to bend everything from tight radii on small profiles to large radii on complex and substantial profiles, the PBT15® delivers an outstanding price/performance ratio without sacrificing versatility. The PBT15® has a spacesaving, compact design and comes equipped with high-performance CNC control. All three rolls are individually driven by clean and quiet electric motors. Rollers are available in 40mm or 65mm diameters depending on customer preference.

Consultation, training and commissioning are included with purchase.

Technical Data of the PBT 15 bender

test
Flat Bar
Power
Maximum Torque per roller
Front Roller Adjustable
Tool Holding Fixture ∅
Lift Height
Hydraulic Drive
Roller Driver
Power Supply
Accuracy X Axis – Manual/PC400
Length
Width
Height
Weight
Specs
½” x 6″ to 12″ Dia.
15 t
800 nm
110–800 mm
40 or 65 mm
250 mm
3 kw
3 x 0.75 kw
400V/20A
1/100 mm
1,400 mm
1,450 mm
1,370 mm
1,275 kg (2811 lbs.)
