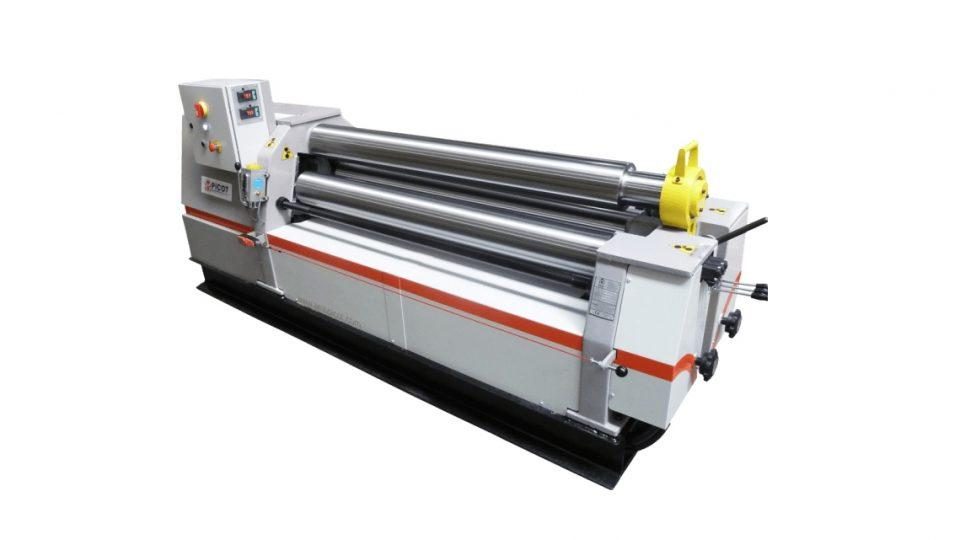

RCS Plate Roll Benders

The bending machines in the RCS series are symmetrical 3-roll hydraulic bending and pre-bending machines with exceptional capacity for high thickness sheet metals. It is the most popular Picot bending machine in production, and especially popular among job shops and contractors. Hardened and surface-treated rolls permit the rolling of all type of material, including steel, stainless steel, aluminum and special alloys. Thanks to the sturdy construction and wide distance between rolls, you can bend larger profiles or bars of heavy thickness. The RCS series plate roll bender can be configured and powered to roll metal sheets ranging between 4mm and 39mm in thickness and between 1,100mm and 4,100mm in length based on customer demands.

The RCS Series is constructed to ensure roll plate bending machine with 15% higher average power for pre-bending compared to 4-roll machines of similar capacity available on the market. It was the first roll bender to be equipped with CNC for the fabrication of unit or serial parts.

It is equipped with a tilting device that integrates pre-bending into the rolling process – delivering perfect pre-bent edges. The RCS plate rolling machine is also well-suited to cone rolling.
